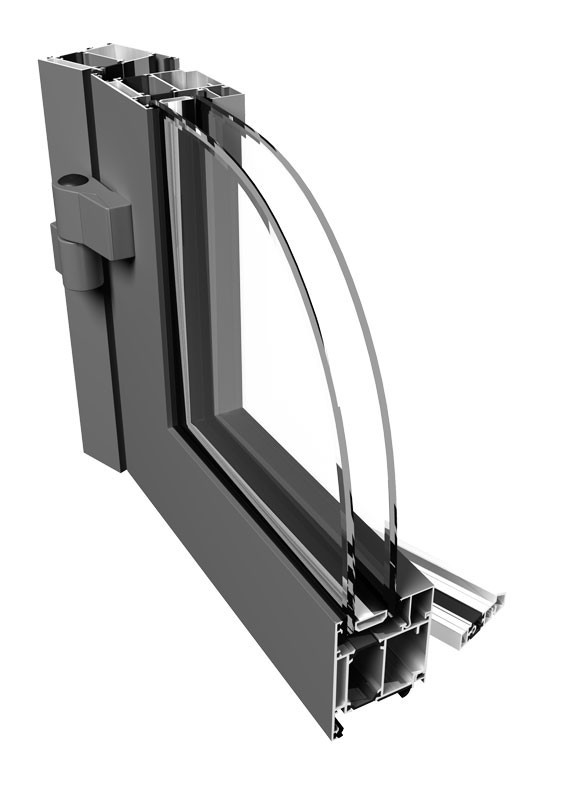

The three-chamber system for the door. The system has a coplanar structure profiles (notch clearance is 18mm) and the possibility of using glazing beads 24 mm profiled fibreglass reinforced polyamide strips are applied in PE 68 system. Specially designed, compatible profiles enable easy connection the door to the windows. The structural depth of the frame and vent is 68 mm.
The large number of hardware and door locks can be used. PE 68 allows you to make as well kneaded as twisted corners.

aluminium profiles
EN AV-6060 according to PN-EN 573-3 / T66 according to PN-EN 515 Al Mg Si 0,5 F22 according to DIN 1725 T1, DIN 17615 T1
Thermal insulation
heat penetration coefficient (of frame) Uf = od 2,2 W/m2K
fillings
single or packet window panels with any kind of glass or opaque panels
surface finishing
powder coating with polyester on chromate undercoater accoording to Qualicoat standards, any RAL colour at choice; anodized in colours: natutal aluminium, olive, champagne, gold, ?old gold?, brown - according to Qualanoad standards, lacquered for colour imitated wood
gaskets
synthetic caoutchouc EPDM according to DIN 7863 and standard according to DIN ISO 3302-1, E2
connecting accessories
corner joints, screws, tap bolts, aluminium washers, inox or galvanized
furniture
renowned companies only: Fapim, Savio, Iseo, Cisa, Geze, KFV, etc.
